LCEL Ecoline

Extended L-Band Active Combiner (4-way, 8-way, 16-way)

The LCEL EcoLine series represents cost effective active L-Band combiners in 1RU/19” rack mount design. The units are available as single combiners (1:4, 1:8 and 1:16), dual combiners (2 x 1:4, 2 x 1:8 and 2 x 1:16) and quad combiners (4 x 1:4, 4 x 1:8).

LCA Baseline

 Extended L-Band Active Combiners (4-way, 8-way, 16-way)

The LCA Baseline series represents professional L-Band active combiners in a compact 1RU/19″ rack mount chassis, especially designed for applications where excellent, stable and accurate signal quality is necessary. The units are available as single units (4:1, 8:1, 16:1) or dual units (2 x 4:1, 2 x 8:1, 2 x 16:1) and are especially designed for applications where stable and accurate signal quality is necessary.

The units support extended L-Band frequency range 850 –2450MHz ready for KA-Band and HTS applications. Additionally, they feature switchable DC-supply (e.g for powering a BUC), RF power monitoring, a rear-side 10MHz external reference signal port and 1:1 redundant dual power supply. Front side status LED´s indicating and monitoring the health status of the unit. Remote configuration, monitoring and alarming can be done via an RJ45 Ethernet-Interface (WebGUI, SNMP).

ICA Baseline

IF Active Combiner (8-way, 16-way)

The ICA Baseline series represents professional active IF combiner in a compact 1RU/19″ rack mount chassis, especially designed for applications where excellent, stable and accurate signal quality is necessary.

The units support IF frequency range 40 – 200MHz. Additionally, they feature switchable 1:1 redundant dual power supply. Front side status LED´s indicating and monitoring the health status of the unit. Remote configuration, monitoring and alarming can be done via an RJ45 Ethernet-Interface (WebGUI, SNMP).

MFC / LCA

Modular Active L-Band Combiners, 1:4, 1:8, 1:16 (*upon request only)

The MFC/LCA series is a high-quality modular L-Band combiner system combining the MFC main chassis (MFC316R2 & MFC416R2) and the LCA combiner modules (4:1, 8:1, 16:1) for combining max. 16 inputs to one output. The MFC Main-Chassis supports 1:1 hot-swappable power supply redundancy and also has front-panel status LED´s displaying the health status of each power supply and inserted combiner module. The LCA combiner-modules are available with 50Ohm SMA(f) or 75Ohm F(f) connectors.

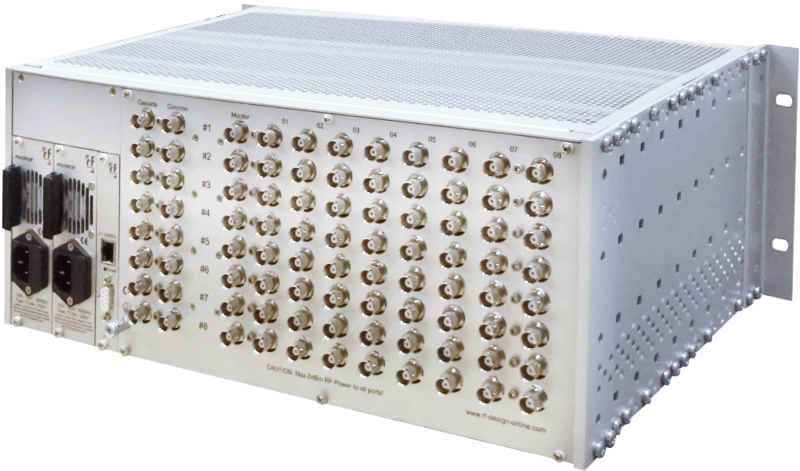

LSC Serie

Modular 8-way L-Band Splitter/Combiner System with 1:1 Amplifier

The LSC series represents a high quality modular L-Band splitter/combiner system suited for versatile RF distribution applications where accurate RF power, high stability and availability is necessary. The system combines the LSC102 (dual splitter/combiner chassis) and the LSC408 (octal splitter/combiner chassis) together with the corresponding 1:8 splitter module (LSM2150-8) and the 8:1 combiner (LCM2150-8) module, each coming with built in 1:1 redundant adjustable amplifier.

The LSC102 chassis has 2 slots for population of max. two 8-way L-Band splitter and/or combiner modules while the LSC408 has 8 slots for insertion of max. eight 8-way splitter/combiner modules.

The LSC series with its flexibility, beneficial features and outstanding RF performance certainly is a perfect fit for any RF distribution infrastructure and perfectly suited for applications in Satellite Earth-Stations, Teleports as well as Broadcast infrastructures.

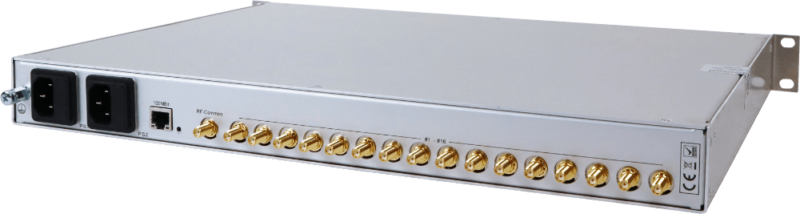

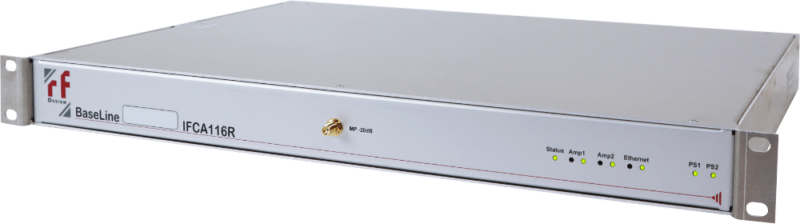

IFCA Baseline

IF Active Combiner 16-way with redundant Amplifier

The ICFA Baseline Combiner represents professional active IF combining in a compact 1RU/19″ rack mount chassis, especially designed for RF distribution applications where excellent, stable and accurate signal quality and performance is necessary

The unit is available as 16-way active combiner and operate at the IF frequency range 50 – 200MHz. Additionally, they feature RF power monitoring at all inputs and at its output and come with 1:1 amplifier and 1:1 redundant dual power supply..

LCEL Ecoline

Extended L-Band Active Combiners (4-way, 8-way, 16-way)

LCA Baseline

Modular Active L-Band Combiners (4-way, 8-way, 16-way)

ICA Baseline

IF Active Combiners (8-way, 16-way)

IFCA Baseline

IF Active Combiners with redundant Amplifiers (16-way)

ELCA Baseline Series

Extended L-Band Active Splitter with redundant Amplifier-

HQC125CR-32

1+1 redundant L-Band Line Amplifiers with modular Combiners (max. 32:1)

RLC2708A / RLC2716A

1+1 redundant L-Band Line Amplifiers with internal 8:1 and 16:1 Combiners

MFC/LCA

Modular Active L-Band Combiners, 4:1, 8:1, 16:1 (*upon request only)

LSCX414

4-way Active L-Band Splitter/Combiner TX/RX System

LSC Series

Modular 8-way L-Band Splitter/Combiner System with 1:1 redundant Amplifier

ELCA Baseline

Extended L-Band Active Combiner with redundant Amplifier

The ELCA Baseline Combiner represents professional active IF combining in a compact 1RU/19″ rack mount chassis, especially designed for RF distribution applications where excellent, stable and accurate signal quality and performance is necessary.

The unit is available as 16-way active combiner and operate at the Extended L-Band Frequency Range 850 – 2450MHz. Additionally, they feature RF power monitoring at all inputs and at its output and come with 1:1 amplifier and 1:1 redundant dual power supply.Front side status LED´s indicating and monitoring the health status of the unit. Remote configuration, monitoring and alarming can be done via an RJ45 Ethernet-Interface (WebGUI, SNMP).

HQC125CR-32

1+1 redundant L-Band Line Amplifiers with combiners (max. 32:1)

The HQC125CR-32 is a 1+1 redundant operating line amplifier with rear-side slots for integration of max. 4 passive combiner modules (capacity 8:1 to max. 32:1), built into a compact 1RU/19″ rack mount chassis. The unit features 8:1 to max. 32:1 L-Band combining while the two high-dynamic redundant operating amplifier modules allow variable gain control from 0 to 25dB as well as slope equalization 0 to 7dB so to reach best RF signal performance within the network. The redundancy switching between the two amplifier modules is done nearly interruption free within a switchover time of less than 5ms. Besides the variable gain control (MGC/AGC) and max. 1:32 splitting the unit additionally supports slope-equalization, RF power monitoring, threshold alarming, 2 front panel monitoring ports as well as 1:1 redundant dual power supply.

The HQC125CR-32 has a front panel LC-Display/keypads for user-friendly local configuration while front panel status LED´s indicating amplifier and power supply status. Remote configuration & monitoring can be done via its rear side Ethernet-Interface (WebGUI, SNMP). This high quality unit comes with lots of beneficial functionalities, superior RF performance and excellent signal quality. It is an ideal fit for any RF distribution infrastructure where accurate RF power as well as highest signal stability and availability is necessary such as Teleports, Satellite Earth-Stations, Broadcast facilities and CATV/IPTV headend platforms.

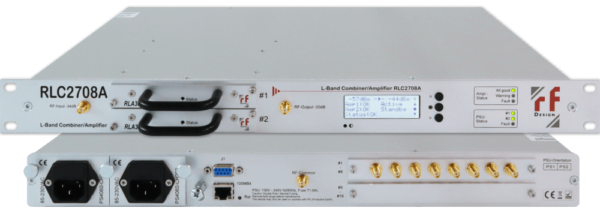

RLC2708A
RLC2716A

1+1 redundant L-Band Line Amplifiers with internal 8:1 and 16:1 Combiner

RF-Design´s RLC2708A and RLC2716A are 1+1 redundant operating line amplifier units with rear-side integrated 8:1 or 16:1 L-Band combiners built into a 1RU/19″ chassis. The units features 8:1 or 16:1 L-Band combining while the two redundant operating amplifiers allow variable gain-adjustment so to reach best RF performance within the network. Besides the variable gain adjustment and 8:1 or 16:1 combining the units also features slope equalization, 10MHz external reference, RF power monitoring as well as 1:1 redundant dual power supply. The RLC2708A and RLC2716A units represent flexible and compact RF distribution & amplification systems perfectly suited for use in Teleports, Satellite Earth Stations, as well as Broadcast- and Broadband facilities wherever accurate RF power, highest stability and availability is necessary. The units have a front-side LC-Display/keypads for local configuration while front-side status LED´s indicating amplifier and power supply status. Remote configuration can be done via the Ethernet-Interface (WebGUI, SNMP).

LSCX414

4-way active Hybrid L-Band Splitter/Combiner TX/RX System

The LSCX414 is a 4-way active hybrid L-Band splitter/combiner at a size of a 1RU/19” rack mount chassis only. The unit is especially designed in particular for VSAT terminals, SNG/DSNG operations but also for other satellite uplink/downlink applications such as small teleports e.g. to interconnect a corresponding number of satellite modems or other devices with it.
