LSEL Ecoline

Extended L-Band Active Splitters (4-way, 8-way, 16-way)

The LSEL EcoLine series represents cost effective active L-Band splitters in 1RU/19” rack mount design. The units are available as single splitters (1:4, 1:8, 1:16), dual splitters (2 x 1:4, 2 x 1:8 and 2 x 1:16) and quad splitter (4 x 1:4, 4 x 1:8).

LSA Baseline

Extended L-Band Active Splitters (4-way, 8-way, 16-way)

The LSA Baseline series represents professional active L-Band splitters in a compact 1RU/19″ rack mount chassis. The units are available as single units (1:4, 1:8, 1:16) or dual units (2 x 1:4, 2 x 1:8, 2 x 1:16) and are especially designed for applications where stable and accurate signal quality is necessary.

The units support extended L-Band frequency range 850 – 2450MHz ready for KA-Band and HTS applications. Additionally, they feature switchable LNB-supply (13/18VDC, 22kHz), RF power monitoring, a rear-side 10MHz external reference signal port and have 1:1 redundant dual power supply. Front side status LED´s indicating and monitoring the health status of the unit. Remote configuration, monitoring and alarming can be done via an RJ45 Ethernet-Interface (WebGUI, SNMP).

ISA Baseline

IF Active Splitters (8-way, 16-way)

The ISA Baseline series represents professional active IF splitters in a compact 1RU/19″ rack mount chassis, especially designed for applications where excellent, stable and accurate signal quality is necessary.

The units support IF frequency range 40 – 200MHz. Additionally, they feature switchable 1:1 redundant dual power supply. Front side status LED´s indicating and monitoring the health status of the unit. Remote configuration, monitoring and alarming can be done via an RJ45 Ethernet-Interface (WebGUI, SNMP).

MFC / LSA

Modular Active L-Band Splitters, 1:4, 1:8, 1:16 (*upon request only)

The MFC/LSA series is a high-quality modular L-Band splitting system combining the MFC main chassis (MFC316R2 & MFC416R2) and the corresponding LSA active splitter modules (1:4, 1:8, 1:16) for splitting one input to max. 16 outputs. The system supports switchable LNB-supply and each splitter-module has status LED´s indicating LNB-supply status. The MFC Main-Chassis 1:1 hot-swappable power supply redundancy and also has front-panel status LED´s displaying the health status of each power supply and inserted splitter-module.

LSC Serie

Modular 8-way L-Band Splitter/Combiner System with 1:1 Amplifier

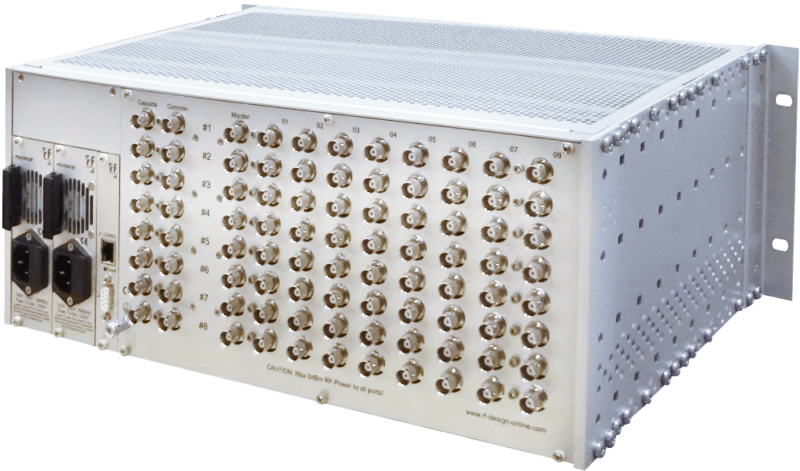

The LSC series represents a high quality modular L-Band splitter/combiner system suited for versatile RF distribution applications where accurate RF power, high stability and availability is necessary. The system combines the LSC102 (dual splitter/combiner chassis) and the LSC408 (octal splitter/combiner chassis) together with the corresponding 1:8 splitter module (LSM2150-8) and the 8:1 combiner (LCM2150-8) module, each coming with built in 1:1 redundant adjustable amplifier.

The LSC102 chassis has 2 slots for population of max. two 8-way L-Band splitter and/or combiner modules while the LSC408 has 8 slots for insertion of max. eight 8-way splitter/combiner modules.

The LSC series with its flexibility, beneficial features and outstanding RF performance certainly is a perfect fit for any RF distribution infrastructure and perfectly suited for applications in Satellite Earth-Stations, Teleports as well as Broadcast infrastructures.

IFSA Baseline

IF Active Splitter 4-way or 16-way with redundant Amplifier

The IFSA Baseline Splitter represents professional active IF splitting in a compact 1RU/19″ rack mount chassis, especially designed for RF distribution applications where excellent, stable and accurate signal quality and performance is necessary

The unit is available as 4-way or 16-way active splitter and operate at the IF frequency range 50 – 200MHz. Additionally, they feature RF power monitoring at all inputs and at its output and come with 1:1 amplifier and 1:1 redundant dual power supply.

LSEL Ecoline

Extended L-Band Active Splitters (4-way, 8-way, 16-way)

LSA Baseline

Modular Active L-Band Splitters (4-way, 8-way, 16-way)

ISA Baseline

IF Active Splitters (8-way, 16-way)

IFSA Baseline

IF Active Splitters with redundant Amplifiers (16-way)

ELSA Baseline Series

Extended L-Band Active Splitter with redundant Amplifier

HQS125CR-32

1+1 redundant L-Band Line Amplifiers with Splitters (max. 1:32)

HQS Series

L-Band Line Amplifiers with internal 1:8 or 1:16 Splitters

RLS2708A / RLS2716A

1+1 redundant L-Band Line Amplifiers with internal 1:8 and 1:16 Splitters

MFC/LSA

Modular active L-Band Splitters, 1:4, 1:8, 1:16 (*upon request only)

LSCX414

4-way Active L-Band Splitter/Combiner TX/RX System

LSC Series

Modular 8-way L-Band Splitter/Combiner System with 1:1 redundant Amplifier

ELSA Baseline

Extended L-Band Active Splitter with redundant Amplifier

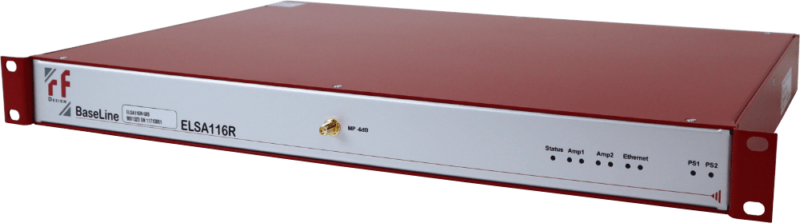

The ELSA Baseline Splitter represents professional active IF splitting in a compact 1RU/19″ rack mount chassis, especially designed for RF distribution applications where excellent, stable and accurate signal quality and performance is necessary.

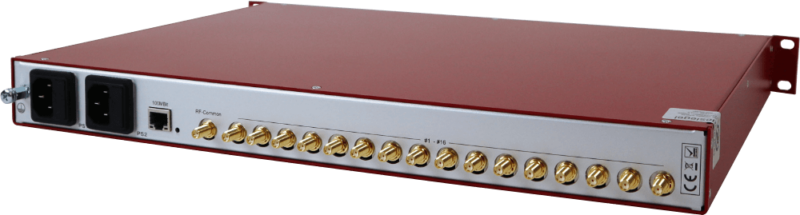

The unit is available as 16-way active splitter and operate at the Extended L-Band Frequency Range 850 – 2450MHz. Additionally, they feature RF power monitoring at all inputs and at its output and come with 1:1 amplifier and 1:1 redundant dual power supply. Front side status LED´s indicating and monitoring the health status of the unit. Remote configuration, monitoring and alarming can be done via an RJ45 Ethernet-Interface (WebGUI, SNMP).

HQS125CR-32

1+1 redundant L-Band Line Amplifiers with splitters (max. 1:32)

The HQS125CR-32 is a 1+1 redundant operating line amplifier with rear-side integrated passive splitter modules (1:8, 1:16, 1:24 or 1:32) built into a compact 1RU/19″ rack mount chassis. The unit features max. 1:32 L-Band splitting while the two high-dynamic redundant operating amplifier modules allow variable gain control 0 to 25dB as well as slope equalization 0 to 9dB so to reach best RF performance within the network. The redundancy switching between the two amplifier modules is done nearly interruption free. The unit additionally supports slope-equalization, 10MHz external reference, RF power monitoring, threshold alarming, front panel monitoring ports, switchable LNB-supply (option) as well as 1:1 redundant power supply. The HQS125CR-32 has a front-side LC-Display/keypads for user-friendly local configuration while front panel status LED´s indicating amplifier and power supply status. Remote configuration & monitoring can be done via its rear-side Ethernet-Interface (WebGUI, SNMP). This high quality unit provides various advantageous functionalities, superior RF performance and excellent signal quality and is an ideal fit for any RF distribution infrastructure where accurate RF power, highest signal stability and availability is necessary.

HQS Series

Line-Amplifiers Splitters

The HQS series represents variable gain L-Band amplifier units with integrated 1:8 or 1:16 splitters. The variable gain line amplifier modules support gain-control ranges of max. 0 to 25dB or 0 to 30dB. The 19″/1RU rack mount chassis „HQS108C“ (1:8 splitter chassis) and „HQS116C“ (1:16 splitter chassis) each with one amplifier slot allow insertion of the corresponding amplifier module HQA2535M“ or „HQA3040M“. The „HQA2535M“ amplifier allows variable gain-control of max. -10 to 15dB @ standard gain mode and max. 0 to 25dB @ high gain mode while the „HQA3040M“ amplifier provides variable gain-control of max. -10 to 20dB @ standard gain mode and max. 0 to 30dB @ high gain mode so to achieve best signal performance within the network. The HQS series features variable gain-control (MGC/AGC), slope equalization, RF power monitoring, switchable LNB-supply, a 10MHz external reference signal input and 1:1 redundant dual power supply (hot-swappable). An integrated RF power detector measures the RF output power with 70dB dynamic range. The units have a front-side LC-Display/keypads for user-friendly local configuration while front-side status LED´s indicating amplifier and power supply status. Remote configuration & monitoring can be done via its rear-side Ethernet-Interface (WebGUI, SNMP). This high quality HQS splitters together with the inserted line amplifier module provide various advantageous functionalities, superior RF performance and excellent signal quality. The HQS units are excellent for compensation of passive RF distribution devices and cable loss and suited for versatile application areas (Teleports, Earth Stations, Broadcast operations…) assuring accurate RF power, highest signal stability and availability.

RLS2708A
RLS2716A

1+1 redundant L-Band Line Amplifiers with internal 1:8 and 1:16 Splitter

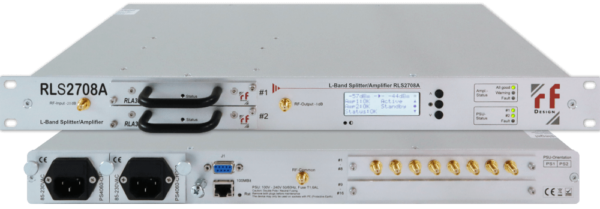

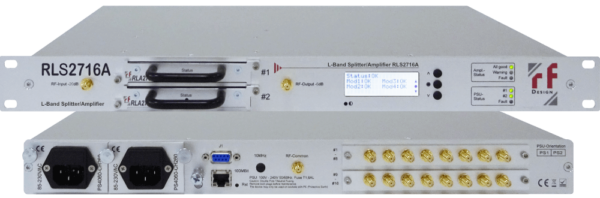

RF-Design´s RLS2708A and RLS2716A are 1+1 redundant operating line amplifier units with rear-side integrated 1:8 or 1:16 L-Band splitters built into a 1RU/19″ chassis. The units features 1:8 or 1:16 L-Band splitting while the two redundant operating amplifiers allow variable gain adjustment so to reach best RF performance within the network. Besides the variable gain adjustment and 1:8 or 1:16 splitting the units also feature slope equalization, 10MHz external reference, RF power monitoring, switchable LNB-supply as well as 1:1 redundant dual power supply. The RLS2708A and RLS2716A units represent flexible and compact RF distribution & amplification systems perfectly suited for use in Teleports, Satellite Earth Stations, as well as Broadcast- and Broadband facilities wherever accurate RF power, highest stability and availability is necessary. The units have a front-side LC-Display/keypads for local configuration while front-side status LED´s indicating amplifier and power supply status. Remote configuration can be done via the Ethernet-Interface (WebGUI, SNMP).

LSCX414

4-way active Hybrid L-Band Splitter/Combiner TX/RX System

The LSCX414 is a 4-way active hybrid L-Band splitter/combiner at a size of a 1RU/19” rack mount chassis only. The unit is especially designed in particular for VSAT terminals, SNG/DSNG operations but also for other satellite uplink/downlink applications such as small teleports e.g. to interconnect a corresponding number of satellite modems or other devices with it.
