RF-Design Produkte

PwrM3G

PowerMeter_Front-1 1000px        PowerMeter-3GHz 1000px.g

Datenblatt


PDF Download

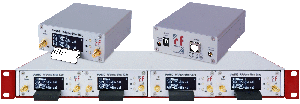

Dual channel RF Power Meter 50MHz to 3GHz

The Pwr3MG is a dual RF power meter unit operating at a frequency range within 50MHz – 3GHz thus perfectly suited for monitoring of RF carrier´s power (e.g. IF, L-Band, extended L-Band) at satellite, cable and terrestrial RF infrastructures. The PwrM3G comes as a compact handheld but can also be integrated into an approbriate 1RU/19″ rack mount chassis that can hold up to 4 power meter modules allowing simultaneous monitoring of 2 to 8 RF signals.

PwrM8G

PowerMeter_Front-1 1000px        PowerMeter-3GHz 1000px.g

Datenblatt


PDF Download

Dual channel RF Power Meter 50MHz to 8GHz

The Pwr8MG is a dual RF power meter unit operating at a frequency range within 50MHz – 8GHz thus perfectly suited for monitoring of RF carrier´s power (e.g. S-Band, C-Band) at satellite and terrestrial RF infrastructures. The PwrM8G comes as a compact handheld but can also be integrated into an approbriate 1RU/19″ rack mount chassis that can hold up to 4 power meter modules allowing simultaneous monitoring of 2 to 8 RF signals.


PwrM40G

PowerMeter_Front-1 1000px        PowerMeter-3GHz 1000px.g

Datenblatt


PDF Download

Dual channel RF Power Meter 100MHz to 40GHz

The PwrM40G is a dual RF power meter unit operating at a frequency range within 100MHz – 40GHz thus perfectly suited for monitoring of RF carrier´s power (e.g. Ku-Band, Ka-Band…) at satellite and terrestrial RF infrastructures. The PwrM40G comes as a compact handheld but can also be integrated into an approbriate 1RU/19″ rack mount chassis that can hold up to 4 power meter modules allowing simultaneous monitoring of 2 to 8 RF signals.


SQA Series

SQA-16_FrontRear-800x269

Datenblatt


PDF Download

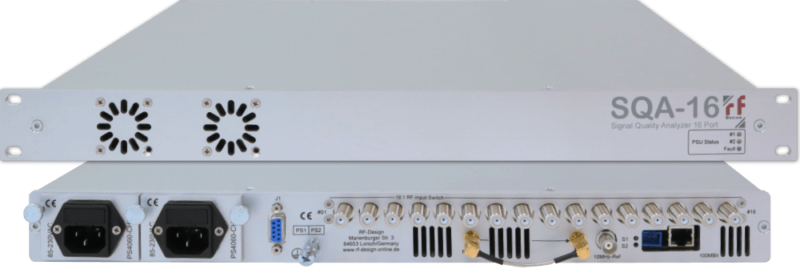

Broadband Remote Spectrum Analyzer

The SQA series represents a multi-input broadband remote spectrum analyzer (available with 1, 16, 32 or 64 RF inputs) covering a frequency range of 5MHz – 3GHz

The SQA series represents broadband remote RF signal monitoring solutions enabling continues signal monitoring but also faults and performance to be identified quickly. The SQA´s feature broadband remote Spectrum Analyzer units (5MHz – 3GHz) available with 1, 16, 32 or 64 inputs for monitoring of max. 64 RF signals. The units are available in a compact size of 1RU/19" (1 or 16 inputs) or 3RU/19" (32 or 64 Inputs) rack mount chassis each populated with a high quality RF-switch as well as 1:1 redundant dual power supply. All RF connectors are either 50Ohm SMA(f) or 75Ohm F(f) type (self-terminated)

rf-Logo_RZ_ohne_klein

PwrM70G

PowerMeter_Front-1 1000px        PowerMeter-3GHz 1000px.g

Datenblatt


PDF Download

Dual channel RF Power Meter 100MHz to 70GHz

The PwrM70G represents broadband power meter device perfectly suited to measure RF in C, KU and KA Band. The PwrM70G is available as a compact handheld unit or a modular type 1RU/19” rack mount chassis that can hold up to 4 power meter modules. The PwrM70G is a perfect solution for broadband monitoring applications, capable for simultaneous monitoring of 2 to 8 RF signals within a frequency range of 100MHz – 70GHz. The PwrM70G power meters provide a large dynamic range with high accuracy assuring excellent and precise RF power monitoring at any time.

PwrM3G

Dual channel RF Power Meter 50MHz – 3GHz

RARRW

PwrM8G

Dual channel RF Power Meter 50MHz – 8GHz

RARRW

PwrM40G

Dual channel RF Power Meter 100MHz – 40GHz

RARRW

PwrM70G

Dual channel RF Power Meter 100MHz – 70GHz

RARRW

SQA Series

Multi-Input RF Signal Quality Analyzer series

RARRW

DC2150

Directional Coupler 850 – 2450MHz (for Measurement)

RARRW


DC2150

DC2150-Chassis_Front  1000px        DC2150-Modul_50S  1000px

Datenblatt


PDF Download

Directional Coupler 850 – 2450MHz

The DC2150 is a directional coupler operating at L-Band (950 – 2150MHz) and extended L-Band frequency range (850 – 2450MHz). It is especially designed for operation in combination with our RF power meter Pwr3MG / RF power meter Pwr8MG / RF power meter Pwr40MG. PwrM3G but can of course also be used independently. A specially designed 1RU/19″ rack mount panel allows insertion of up to 8 DC2150 directional couplers.
