FlexLink K7-Pro

Extended L-Band Switch Matrix 8:8 to 64:64, 850 – 2450MHz (fan-out/distributive)

The FlexLink K7-Pro is an innovative, unique and clever scalable L-Band Switch Matrix system in 6RU/19″ rack mount design supporting Extended L-Band frequency range (850 – 2450MHz), useable for Ka-Band and HTS applications. It allows various switch/routing configurations from 8:8 to 256:256 (increments of 8). The system comes with standard features like variable gain-control, slope equalization, RF power monitoring and also is equipped with an 10MHz external reference signal port.

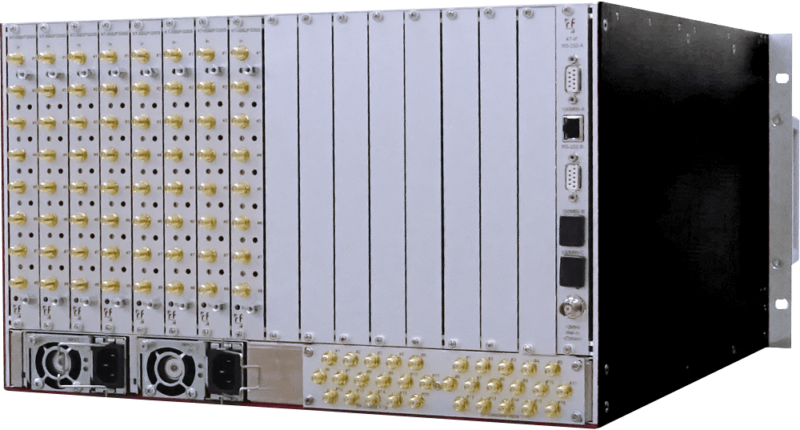

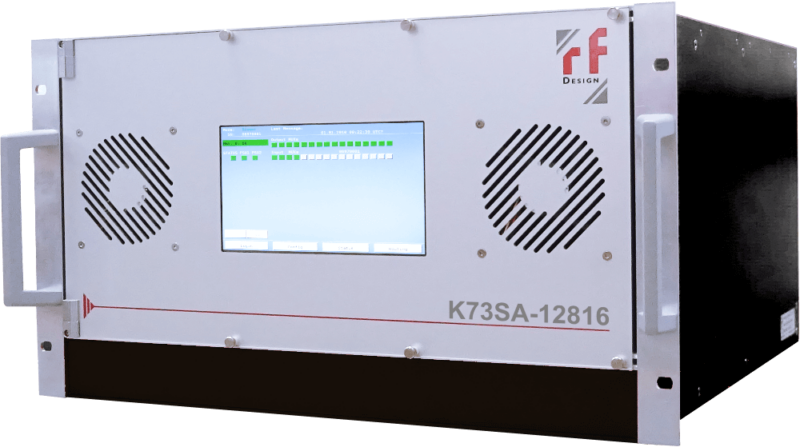

FlexLink K73SA


L-Band Switch Matrix 8:8 to 128:16 (fan-out/distributive)

The The FlexLink K73SA-12816 a represents professional Switch Matrix system, built into a 6RU/19″ rack mount chassis with only 500mm depth, supporting L-Band (950 – 2150MHz) and Extended L-Band (850 – 2450MHz) making it a perfect solution also for KU/KA-Band and HTS applications.

The system can be assembled with various input/output configurations from 8:8 to max. 128:16 simply by adding additional input/output switchboards (increments of 8). It performs as a distributive switch/routing platform allowing to switch/route any selected input to any or all outputs.

FlexLink S9E-1616

Extended L-Band Switch Matrix 16:16 (fan-out/distributive)

The FlexLink S9E-1616 is a professional L-Band Switch Matrix coming in a compact 1RU/19″ rack mount chassis supporting L-Band and also Extended L-Band frequency range (850 – 2450MHz), useable for Ka-Band and HTS applications. The unit comes with a 16.16 I/O configuration. It features variable gain control, slope equalization, RF power monitoring, switchable LNB-supply, 10MHz external ref. signal input and 1:1 redundant dual power supply. The unit is available with 50Ohm or 75Ohm RF connectors. A LC-Display with keypads allows easy local configuration. Remote configuration can be done via its Ethernet-Interface (WebGUI, SNMPv2c).

FlexLink S9E-1608C

Extended L-Band Switch Matrix 16:8 (fan-in/combining)

The FlexLink S9E-1608C is a professional L-Band Switch Matrix coming in a compact 1RU/19″ rackmount chassis supporting L-Band and also Extended L-Band frequency range (850 – 2450MHz), useable for Ka-Band and HTS applications. The unit comes with a 16:8 I/O configuration (fan-in/combining) and features variable gain control, RF power monitoring, DC-Supply and 10MHz external ref. signal input (both on request) and 1:1 redundant dual power supply. The unit is available with 50Ohm or 75Ohm RF connectors. A LC-Display with keypads allows easy local configuration. Remote configuration can be done via its Ethernet-Interface (WebGUI, SNMPv2c).

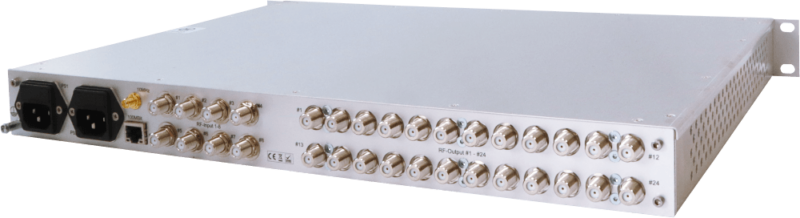

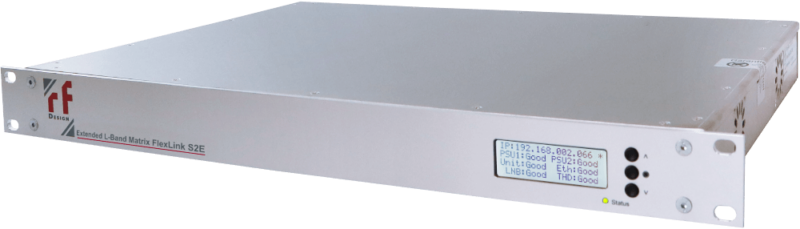

FlexLink S2E

Extended L-Band Switch Matrix 8:24 (fan-out/distributive)

The FlexLink S2E in 1RU/19″ rack mount design represents a 8:24 Ext. L-Band Switch Matrix. This unit features an efficient, reliable and space saving solution for today´s and future Ext. L-Band signal management applications and allows to switch/route up to 8 independent Ext. L-Band signals to up to 24 outputs without limitations and interferences (any input can be routed to one or all outputs) while all combinations of in- and outputs are freely configurable locally and remotely..

FlexLink S9E-88

Extended L-Band Switch Matrix 8:8 (fan-out/distributive)

The FlexLink S9E-88 is a professional L-Band Switch Matrix coming in a compact 1RU/19″ rack mount chassis supporting L-Band and also Extended L-Band frequency range (850 – 2450MHz), useable for Ka-Band and HTS applications. The unit comes with a 8:8 I/O configuration. It features variable gain control, slope equalization, RF power monitoring, switchable LNB-supply, 10MHz external ref. signal input and 1:1 redundant dual power supply. The unit is available with 50Ohm or 75Ohm RF connectors. A LC-Display with keypads allows easy local configuration. Remote configuration can be done via its Ethernet-Interface (WebGUI, SNMPv2c).

FlexLink S9E-88C

Extended L-Band Switch Matrix 8:8 (fan-in/combining)

The FlexLink S9E-88C is a professional 8×8 full fan-in/combining Switch Matrix, coming in a compact 1RU/19″ rack mount chassis. It supports L-Band and extended L-Band frequency range (850 – 2450MHz) and thus is useable also for Ka-Band and HTS applications. The unit features variable gain control, slope equalization, RF power monitoring, switchable LNB-supply and 1:1 redundant dual power supply. Configuration and monitoring can be done locally (LC-Display/keypads) and remotely (WebGUI).

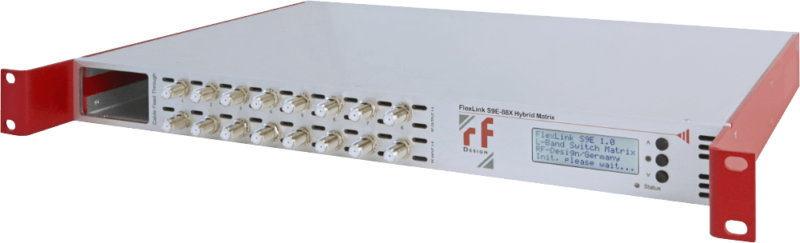

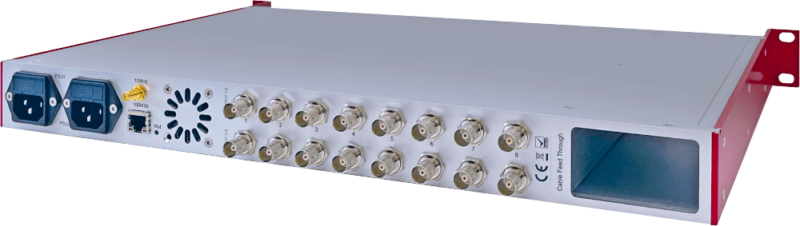

FlexLink S9E-88X Hybrid

Extended L-Band Hybrid Switch Matrix 2 x 8:8 (distributive & combining)

The FlexLink S9E-88X represents a professional dual 8:8 hybrid Switch Matrix. It includes an 8:8 distributive (fan-out) and an 8:8 combining (fan-in) switch matrix both built into a 1RU/19” rack mount chassis.

The FlexLink S9E-88X is a future proof hybrid Switch Matrix supporting extended L-Band frequency 850 – 2450MHz thus also ready for Ka-Band and HTS applications. The unit features an efficient, flexible and reliable solution for today´s and future L-Band signal management applications and is a perfect fit for satellite uplink and downlink stations such as VSAT hubs and terminals, small satellite ground stations and teleports, LEO and MEO gateways, as well as for maritime and oil & gas terminals.

FlexLink S92E-3232

IF Switch Matrix 32:32, 40 – 200MHz (fan-out/distributive)

The FlexLink S92E-3232 is a professional 32:32 IF Switch Matrix operating at a frequency range of 40 – 200MHz with a 32:32 I/O configuratiaon (fan-out, distributive) The unit comes with a rack mount chassis with a size of 4RU/19″. It additionally supports RF power monitoring, threshold alarming  and 1:1 redundant dual power supply. Local monitoring and Configuration can be done via a front panel LC-Display touchscreen while remote configuration is possible via its rear side Ethernet-Interface (WebGUI, SNMPv2c).

FlexLink

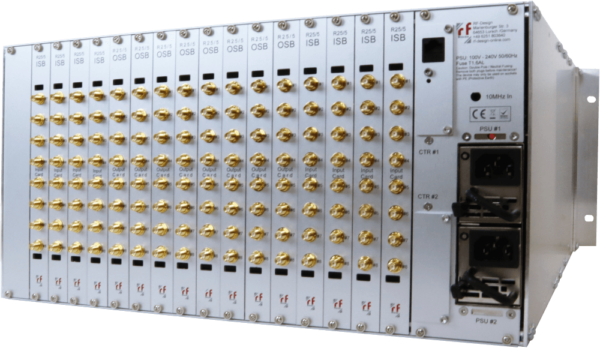

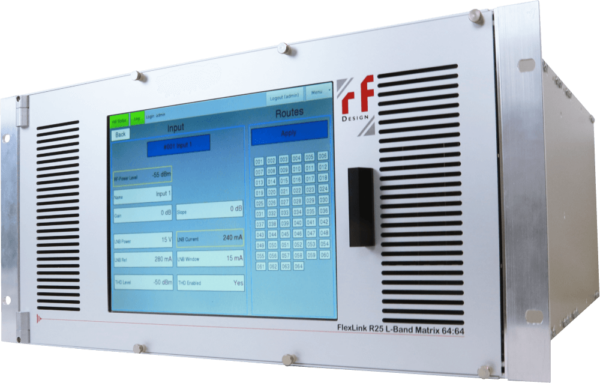

R25 distributive

Extended L-Band Switch Matrix System Eco and Pro Version 64:64

The FlexLink R25 represents an unique, innovative & clever L-Band Switch Matrix system, built into a 3RU/5RU/19″ rack mount chassis with only 500mm depth. It comes as scalable fan-out/distributive system allowing to switch/route any selected input to any or all outputs enabling to switch/route various inputs to a dedicated output. The 3RU/5RU/19” chassis can be assembled with various input/output configurations from 4:4 to 64:64 (symmetrically & unsymmetrically)

The FlexLink R25 Switch Matrix system is a future proof solution coming with widened bandwidth supporting the extended L-Band (850 – 2450MHz) frequency range making it a perfect solution also for KA-Band and HTS applications.

FlexLink R25 - Serie

Produkte Übersicht / Overview

FlexLink R25 distributive

Extended L-Band Switch Matrix System Eco and Pro Version 64:64

FlexLink R25S distributive

L-Band / S-Band Switch Matrix System 64:64 800MHz – 4GHz

FlexLink R25IF distributive

IF 10 – 200MHz Switch Matrix System 64:64

FlexLink R25C combining

Extended L-Band Combining Matrix 64:64

FlexLink R25CS combining

L-Band / S-Band Combining Matrix 64:64 800 – 4GHz

FlexLink R25IF combining

IF 10 – 200MHz Combining Switch Matrix System 64:64

FlexLink K7-Pro

Extended L-Band Switch Matrix 8:8 – 64:64 (fan-out/distributive)

FlexLink K7A

Extended L-Band Switch Matrix 8:8 – 64:64 (fan-out/distributive)

FlexLink K73SA

L-Band Switch Matrix 8:8 – 128:16

FlexLink SP8T/SP16T

Broadband 10MHz – 3,25GHz Switch Units 8:1 & 16:1

FlexLink S9E-1616

Extended L-Band Switch Matrix 16:16 (fan-out/distributive)

FlexLink S9E-1608C

Extended L-Band Switch Matrix 16:8 (fan-in/combining)

FlexLink S9E-88

Extended L-Band Switch Matrix 8:8 (fan-out/distributive)

FlexLink S9E-88C

Extended L-Band Switch Matrix 8:8 (fan-in/combinig)

FlexLink S9E-88X Hybrid

Ext. L-Band Hybrid Switch Matrix 2 x 8:8 (distributive & combining)

FlexLink S2E

Extended L-Band Switch Matrix 8:24 (fan-out/distributive)

FlexLink S92E-3232

IF Switch Matrix 32:32, 40 – 200MHz (fan-out/distributive)

FlexLink
R25 combining

Extended L-Band Switch 64:64

The FlexLink R25C represents an unique, innovative & clever L-Band Combining Matrix, built into a 5RU/19″ rack mount chassis with only 500mm depth. It comes as fan-in/combining system enabling to switch/route various inputs to a dedicated output. The 5RU/19” chassis can be assembled with various input/output configurations from 8:8 to 64:64 (symmetrically & unsymmetrically)

The FlexLink R25C Combining Matrix system is a future proof solution coming with widened bandwidth supporting the extended L-Band (850 – 2450MHz) frequency range making it a perfect solution also for KA-Band and HTS applications.

The flexible modular design makes it possible to mix the input and output connectors with various connector types (50Ohm SMA or BNC) giving the operator the flexibility for future expansions.

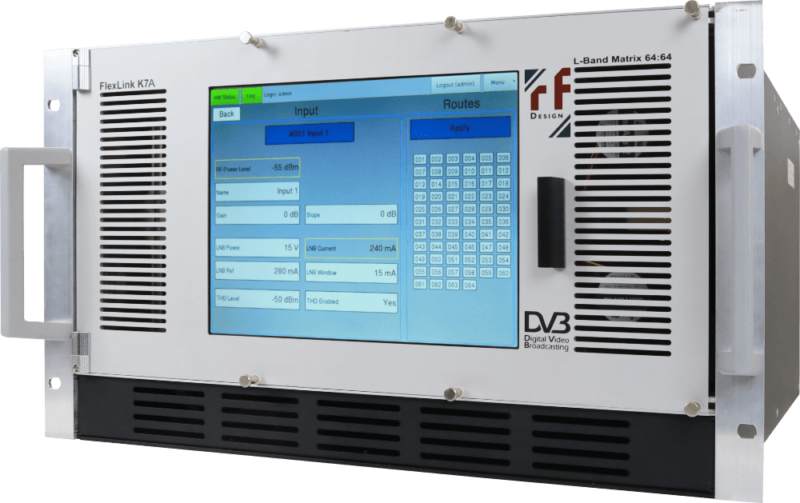

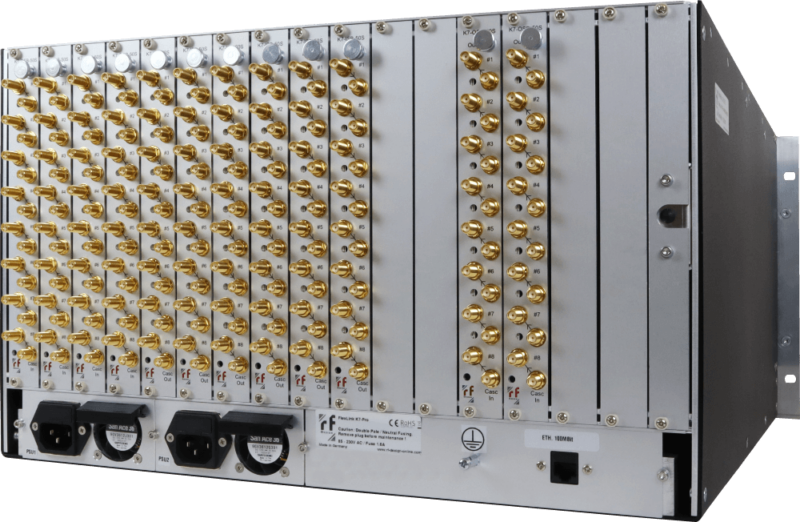

FlexLink K7A

Extended L-Band Switch Matrix 8:8 to 64:64, expandable to 256:256

The FlexLink K7A represents a unique, innovative & clever L-Band Switch Matrix system, built into a 6RU/19″ rack mount chassis with only 500mm depth. It performs as a scalable distributive switch/routing platform allowing to switch/route any selected input to any or all outputs and can be assembled with various input/output configurations from 8:8 to 64:64 in one matrix chassis and to up to 256:256 (symmetrical & unsymmetrical) with additional matrix chassis and corresponding I/O switch-boards, while the modular concept also allows other input/output configurations (increments of 8).

The FlexLink K7A is future proof coming with widened bandwidth of 850 – 2450MHz supporting the extended L-Band (850 – 2450MHz) frequency range making it a perfect solution also for KA-Band and HTS applications.

FlexLink
R25CS combining

L-Band / S-Band Combining Matrix 64:64 800 – 4GHz

The FlexLink R25CS is a versatile, innovative, and compact RF combining matrix, designed for high-performance signal routing in satellite, broadcast, test, and defense environments. Housed in a 5RU/19″ rackmount chassis with just 500 mm depth, it supports fan-in/combining configurations from 8:8 up to 64:64, available in both symmetric and asymmetric layouts.
Engineered with a wide frequency range (800–4000 MHz), the R25CS goes beyond traditional L-Band, covering parts of the S-Band, making it ideally suited for Ka-Band gateways, HTS (High Throughput Satellites), S-band satellite links, radar systems, and RF test automation.
Its modular design allows flexible combinations of input/output connectors (50 Ohm SMA or BNC), enabling seamless future upgrades or integration into existing infrastructures.
The FlexLink R25CS is a future-proof RF signal management solution for demanding applications in satellite communications, aerospace, defense, and RF laboratories—where flexibility, performance, and reliability are critical.

FlexLink
R25IF combining

IF 10 – 200MHz Combining Switch Matrix System 64:64

The FlexLink R25 represents an unique, innovative & clever IF 200MHz Combining Switch Matrix system (10 – 200MHz), built into a 5RU/19″ rack mount chassis with only 500mm depth. It comes as scalable fan-out/distributive system allowing to switch/route any selected input to any or all outputs enabling to switch/route various inputs to a dedicated output. The 5RU/19” chassis can be assembled with various input/output configurations from 8:8 to 64:64 (symmetrically & unsymmetrically).

This Switch Matrix replaces very cost-effective standard fix distribution systems and offer a maximum in flexibility combined with state-of-the-art functionalities, features, excellent RF performance and various options. All matrix switch boards are hot-swappable and easy to replace without removing any cables.

FlexLink
R25S distributive

L-Band / S-Band Switch Matrix System 64:64 800MHz – 4GHz

The FlexLink R25S is a versatile, innovative, and compact RF distributive matrix, designed for high-performance signal routing in satellite, broadcast, test, and defense environments. Housed in a 5RU/19″ rackmount chassis with just 500 mm depth, it supports fan-out/distributive configurations from 8:8 up to 64:64, available in both symmetric and asymmetric layouts.
Engineered with a wide frequency range (800–4000 MHz), the R25S goes beyond traditional L-Band, covering parts of the S-Band, making it ideally suited for Ka-Band gateways, HTS (High Throughput Satellites), S-band satellite links, radar systems, and RF test automation.
Its modular design allows flexible combinations of input/output connectors (50 Ohm SMA or BNC), enabling seamless future upgrades or integration into existing infrastructures.
The FlexLink R25S is a future-proof RF signal management solution for demanding applications in satellite communications, aerospace, defense, and RF laboratories—where flexibility, performance, and reliability are critical.

FlexLink
R25IF distributive

IF 10 – 200MHz Switch Matrix System 64:64

The FlexLink R25 represents an unique, innovative & clever IF 200MHz Switch Matrix system (10 – 200MHz), built into a 5RU/19″ rack mount chassis with only 500mm depth. It comes as scalable fan-out/distributive system allowing to switch/route any selected input to any or all outputs enabling to switch/route various inputs to a dedicated output. The 5RU/19” chassis can be assembled with various input/output configurations from 8:8 to 64:64 (symmetrically & unsymmetrically).
This Switch Matrix replaces very cost-effective standard fix distribution systems and offer a maximum in flexibility combined with state-of-the-art functionalities, features, excellent RF performance and various options. All matrix switch boards are hot-swappable and easy to replace without removing any cables.

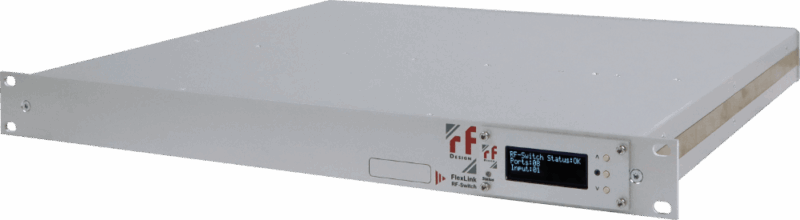

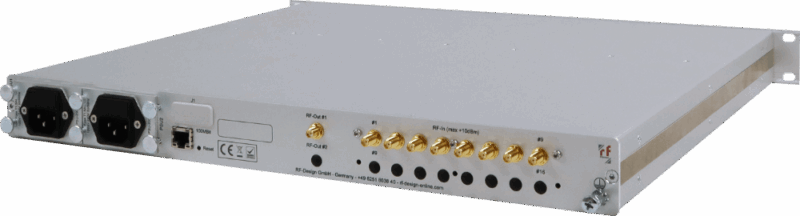

FlexLink
SP8T / SP16T

Broadband 10MHz – 3,25GHz Switch Units 8:1 & 16:1

The FlexLink-SP8T and -SP16T series represents professional and reliable RF-switch units available 8:1 and 16:1 in 1RU/19″.
The FlexLink-SP8T and -SP16T RF-switches are perfectly suited for integration in Teleports, Satellite Earth-Stations, as well as Broadcasting and CATV/IPTV architectures.
The units feature RF-power monitoring (upon request) and come with 1:1 power-supply redundancy (hot-swappable). Excellent RF performance assures stable operation and perfect signal quality. A front-panel LC-Display/keypads allow user-friendly local configuration while remote configuration can be realized via its Ethernet Interface (WebGUI/SNMP).
