ARC-40

Antenna Remote Controller

Universeller 3-Achsen Antennenkontroller
inkl. LNB und DiSEqC Steuerung.

AHC-20

Antenna Heating Controller

Der AHC-20 erzielt mit seiner Multisensorik sowie der äusserst flexiblen Ein- und Ausgangs- Auslegung bis zu 40 Prozent Heizkosteneinsparung. Maximale Betriebssicherheit und rationaler Energieeinsatz wird garantiert. In 19“ 1HE Bauweise oder für DIN Hutschienen-Montage erhältlich.
Erfahrungsgemäss können bis zu 40% Antennenheizkosten eingespart werden. Für praktisch alle üblichen professionellen Satelliten- Spiegel aber auch für Kunden- oder antennenspezifische Spezialausführungen.

MFC/SLC4403M

16-way Standard LNB-supply System

The MFC316R2A/SLC4403-M is a standard modular type LNB-supply system for DC-supply of up to 16 LNB´s. The SLC4403-M is a LNB-supply module featuring switchable LNB-supply 13/15/18V, 22kHz for 1 LNB while the MFC316R2A is the corresponding 3RU/19″chassis which can hold up to 16 LNB-supply modules. The system allows DC-supply and configuration for each LNB individually, locally via its front-side 5,7″ touchscreen LC-Display and remotely via its Ethernet-Interface (WebGUI, SNMP). It also features a 10MHz reference signal port and 1:1 redundant power supply (hot-swappable).

CCI-20/SC
CCI-30/SC

Command and Control Interface

Das CCI-20/SC wurde von GloboTech speziell entwickelt, um ohne M&C Software verschiedene Geräte mit verschiedenen Schnittstellen (RS232, RS485, Ethernet) als ein System vereinfacht darstellen und steuern zu können.

MFC/ILC4803M

16-way Intelligent LNB-supply/control System

The MFC316R2A/ILC4803-M features an intelligent modular type LNB-supply/control system for up to 16 LNB´s. The ILC4803-M is a LNB-supply/control module (13/15/18V, 22kHz) also featuring an active amplifier (adjustable gain). An integrated RF power detector measures the RF output power with 70dB dynamic range at the ILC4803-M module. The MFC316R2A represents the corresponding 3RU/19″ chassis for insertion of max. 16 ILC4803-M modules. Each ILC4803-M module can be configured locally via a 5.7” touchscreen and remotely via its rear-side Ethernet Interface (WebGUI, SNMP). The system also features a 10MHz reference signal port and 1:1 redundant power supply (hot-swappable).

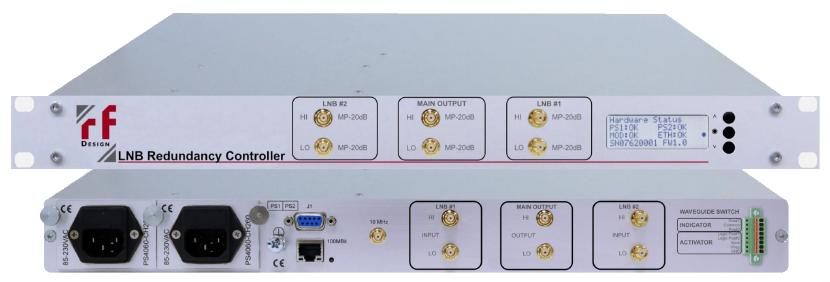

LRC1142

LNB Redundancy Controller

The LNB Redundancy Controller is a switching and managing device for redundant LNB operation in a professional environment. Two LNB’s can be operated and powered independent. The current consumption and the rf power is continuously monitored form each polarisation and from each LNB. The unit allows to configure all LNB´s individually, also via Web-Interface.

The LNB Redundancy Controller is available in a 1RU/19″ rack mount chassis and also provides 1:1 hot swappable power supply redundancy. Furthermore, the unit offers RF power monitoring for every Bias-Tee via a 20dB measuring port located at the front of the unit. Local control can be done with front panel LC-Display, keypads and LED´s while remote access, monitoring and control can be done via 10/100Mbit LAN-Interface SNMP and WebGui.

LRC1142

LNB Redundancy Controller

SLC4124

Standard QUAD LNB/LNA supply unit

MFC/SLC4403M

16-way Standard LNB-supply System

MFC/ILC4803M

16-way Intelligent LNB-supply/control System

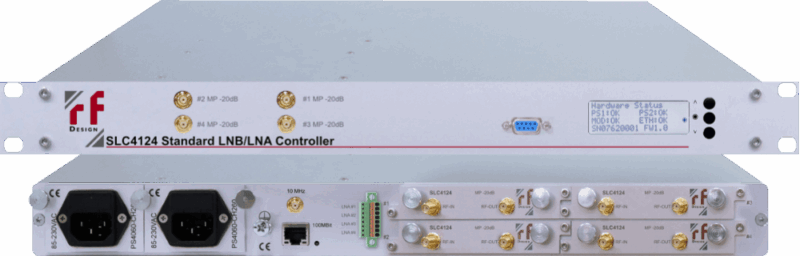

SLC4124

Standard QUAD LNB/LNA supply unit

The SLC4124 is a standard LNB power supply unit featuring four internal Bias-Tees/Directional couplers with 13V, 18V and 22kHz supply for max. 4 LNB´s. The unit allows to configure all LNB´s individually, also via Web-Interface. The SLC4124 is available in a 1RU/19″ rack mount chassis and also provides 1:1 hot swappable power supply redundancy. Furthermore, the unit offers RF power monitoring for every Bias-Tee via a 20dB measuring port located at the front of the unit.

Local control can be done with front panel LC-Display, keypads and LED´s while remote access, monitoring and control can be done via 10/100Mbit LAN-Interface SNMP and WebGui. The unit is ideally suited for LNB supply purposes in Satellite-, broadcast and broadband communication architectures like Teleports, Earth Stations, broadcast facilities and cable headend platforms
