The FiberLinkplus RF-over-Fiber system for non-redundant optical transmission of RF signals is available in sizes of 1RU/19″ & 3RU/19″ rack mount design and holds up to 4 optical TX/RX modules with the 1RU/19″ chassis or up to 16 optical TX/RX modules with the 3RU/19″ chassis. It features Laser/Link monitoring, status LED´s, variable gain control, RF power monitoring, switchable LNB-supply, hot-swappable TX/RX modules and 1:1 redundant dual power supply as well as local or remote configuration and monitoring.

This professional RF-over-Fiber system stands for perfect RF performance as well as stable signal distribution and is perfectly suited for Teleports, Satellite Earth Stations, Broadcasting and Cable/IPTV operations.

FiberLinkplus
(N+2-redundant)

FiberLinkplus  N+1 & N+2 redundant RF-over-Fiber

This FiberLinkplus system comes in 1RU or 3RU/19″ design, supporting versatile redundant optical transmission configurations (N+1 or N+2). It is designed for flexible, high quality and absolute secure optical transmission for 1 to 16 signals (L-Band, extended L-Band) over a distance of up to 20 km. The redundancy switching can be realized and configured locally (LCD touchscreen) but also remotely via the Ethernet-Interface (WebGUI/SNMP). The system supports 1:1 redundant dual power supply, hot-swappable TX/RX modules, variable gain control and RF power-monitoring. It comes with a front side LC-Display/keypads or a 5,7″ touchscreen display for local configuration as well as a rear-side Ethernet-Interface for remote configuration (WebGUI, SNMP).

FiberLinkplus
(1:1-redundant)

FiberLinkplus  1:1 redundant RF-over-Fiber

The FiberLinkplus for 1:1 redundant optical operation comes in 1RU/19″ or 4RU/19″ rack mount chassis allowing flexible, high quality and absolute secure optical transmission of max. 16 signals (L-Band or extended L-Band) over a distance of up to 20 km. The redundancy switching can be realized manually via the front panel LC-Display/touchscreen and remotely via the Ethernet-Interface (WebGUI, SNMP). 1:1 redundant dual power-supply, hot-swap TX/RX modules, variable gain control, RF power-monitoring and switchable LNB-supply (upon request) is also supported. It comes with a front side LC-Display/keypads or a 5,7″ touchscreen display for local configuration as well as a rear-side Ethernet-Interface for remote configuration (WebGUI, SNMP).

GloboTech, für LWL Ihr Ansprechpartner folgender Produkte:

 RF-Design

• LWL RF to Fiber
• HF Matrizen/Umschalter
• HF-Verstärker
• HF-Splitter/Combiner
• Messgeräte

 Foxcom

• LWL RF to Fiber
• GNSS/GPS Repeater

FiberLink2plus
(Dual Channel)

Dual Channel RF-over-Fiber System (Broadband 10MHz – 3.2GHz)

The FiberLink2plus incorporates 1RU/19” and 3RU/19” rackmount chassis with capacity for maximum 4 or 16 dual optical TX and/or RX modules and the corresponding optical TX and RX modules available for various RF frequency ranges. It allows distribution of up to 32 RF signals over optical fiber and besides its modular and high-density design, it also offers premium quality and many beneficial features.

It allows distribution of up to 32 RF signals over optical fiber and is perfectly suited for flexible and high-quality optical transmission of up to 32 RF signals covering a frequency range of 10MHz – 3.2GHz over a distance of up to 20km.

QLink Quad

QLink Quad, Modular Quad RF-over-Fiber System

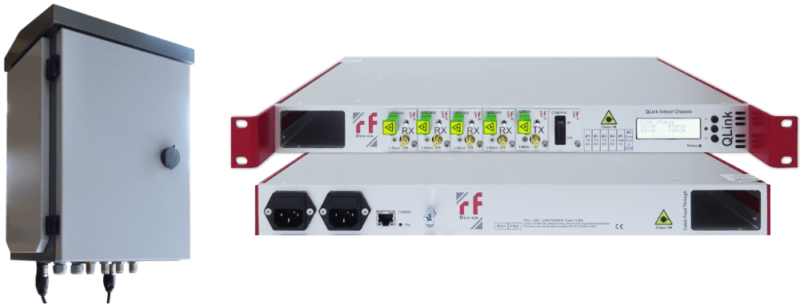

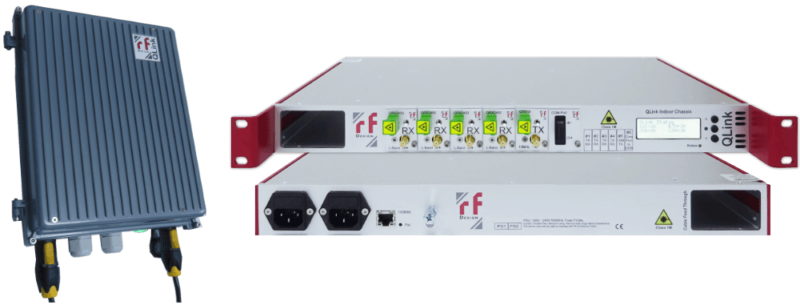

The QLink is a modular, compact and field expandable Quad RF-over-Fiber system, supporting extended L-Band 850-2450MHz and 10MHz. The outdoor enclosure and the 1RU/19” rack mount chassis (indoor) can each be populated with max. 4 optical TX and/or RX modules, also supporting mixed TX/RX population.

Its flexibility, high quality and reliability along with lots of beneficial features and functionalities make it a perfect fit for RF-o-Fiber optical transmission at TVRO or uplink and downlink operations in Teleports, Satellite Earth Stations, VSAT hubs/terminals as well as at Broadcast- and Broadband operations.

QLink2

Quad RF-over-Fiber TX Outdoor System

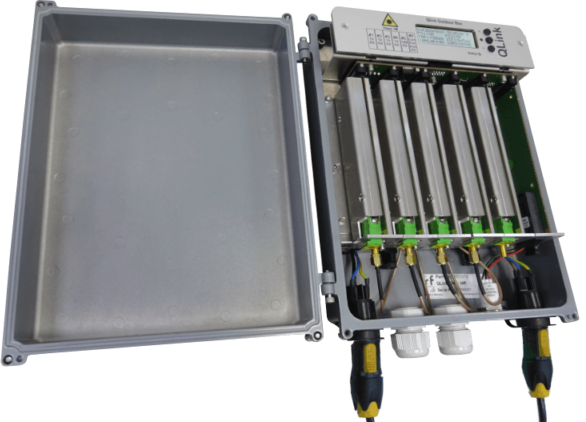

The QLink2 TX-System represents a compact and modular Quad outdoor RF-over-Fiber system that can be populated with up to 4 optical TX (transmit) modules. The system allows secure and high quality optical transmission of RF signals in L-Band and Extended L-Band over a distance of up to 5km. The outdoor enclosure is designed to be mounted directly at the antenna mast. The System furthermore comes with beneficial features such as variable gain-control, RF power monitoring, laser monitoring, switchable LNB-supply and 1:1 redundant dual power supply.

Local configuration and monitoring of the QLink2 system can be done via its front panel LC-Display/keypads. The QLink2 system is a versatile, space and cost efficient outdoor optical transmission solutions perfectly suited for applications in Teleports, Satellite Earth Stations, Broadcast- and Broadband facilities.

PL27220T

2-fach L-Band Link Module

Dual  DownLink Module (bis 24 Links in einem 3HE Chassis),  1310 oder 1550nm (CWDM Multiplex Optionen), L-Band 950-3000MHz, Übertragungs-Distanz bis 10Km, MGC/AGC, automatisch einstellbare IMD/CNR Link-Kalibration mit IMizer TM, Management via Front Panel LCD und Ethernet/SNMP Management-Modul.

7190M

1 HE Chassis für 4 Rx/Tx Module

19" 1HE Chassis kompatibel mit allen Foxcom Light, Gold und Platinium Modulen, Steckplätze für bis zu 4 Rx/Tx Module,  redundante Netzteile (hot swap)

PL7440

Breitband L-Band Link Module (10-3000MHz)

Frequenzbereich: 10 - 3000MHz, Übertragungsdistanz über 8 Km (15 Km mit PL7440T1550), 1310 oder 1550nm (CWDM Multiplex Optionen), SNMP Management und Front Panel LCD Bedienung, verschiedene HF- und optische Stecker.

4000 ODU

Aussen-Einheit (ODU) für 6 TRx/Tx Module

IP 65 Aussen-Gehäuse welches bis zu sechs LWL Module aufnimmt, IP-67 für extreme Aussenverhältnisse, Hot Swap, 1:1 Redundanz, M&C Management fähig, MGC/AGC, LNB Speisung (optional schaltbar via M&C) Optionen: Single- oder Multi-Kanal CWDM, 10MHz Ref., Dual PSU etc.

CWDM 3000

CWDM-Multiplexer & Demultiplexer  (1HE)

8 Kanal (1470nm-1610nm) LWL Fiber Multi- und Demultiplexer.

PL7220T
PL7220R10

L-Band Link Module für 40km

Single DownLink Modul, L-Band 950-3000MHz. 1310 oder 1550nm (CWDM Multiplex Optionen), Übertragungs-Distanz bis 40Km, MGC/AGC, automatisch einstellbare IMD/CNR Link-Kalibration mit IMizer TM, Management via Front Panel LCD und Ethernet/SNMP Management-Modul.

PL700 MCP

Management-Modul

Management-Modul (Main Control Processor). Ethenet: HTTPS, SNMP, RS232: Telnet/CLI

PL7010

3HE Chassis für 12 Rx/Tx Module plus Management-Modul

19" 3HE Chassis kompatibel mit allen Foxcom Light, Gold und Platinium Modulen, Steckplätze für bis zu 12 Rx/Tx Module, redundante Netzteile (hot swap) sowie 1 Management-Modul (Ethernet),

FiberLinkplus
ODA System

Outdoor RF-over-Fiber System Standard, 1:1, N+1 & N+2

The FiberLinkplus-ODA system is a compact and weatherproof (IP65 specified) modular-type outdoor application RF-over-Fiber outdoor enclosure system that can be populated with various optical TX/RX chassis allowing standard, 1:1 redundant as well as N+1 and/or N+2 redundant optical transmission. The system is designed to be mounted close to the antenna and made for flexible, high quality and secure optical transmission of RF signals (L-Band or extended L-Band) over a distance of up to 10 km. The system can hold up to 8 Transmit- or Receive Modules for standard operation also supporting various 1:1 as well as N+1 and N+2 redundant operation. The system furthermore features variable gain control, RF power monitoring, Laser/Link monitoring and switchable LNB-supply (for non-redundant & 1:1 redundant version only). This outdoor RF-over-Fiber system assures superior RF performance and stability and can be configured and monitored remotely via its Ethernet-Interface (WebGUI, SNMP).

The FiberLinkplus-ODA system is a versatile, space and cost-efficient outdoor optical transmission solution and perfectly suited for applications in Teleports, Satellite Earth Stations as well as Broadcast- and Broadband facilities.

Ecoline FiberLink

Extended L-Band and Broadband EcoLine FiberLink

The Ecoline TX/RX2450EL and EcoLine TRX2450EL / TRX3000EL Modules represent a cost effective RF over Fiber solution designed in a compact form allowing a handheld operation as well as population in a 1RU/19” chassis in a locally managed Environment. Ecoline TX/RX2450EL modules allow a conventional unidirectional links, while EcoLine TRX2450EL / TRX3000EL Modules allow a bidirectional link within one module by utilizing different Wavelengths.

FiberLink
CompactLine

16 x 1 non redundant and 4 x 1:1, 4 x 2+1 & 2 x 4+1 redundant

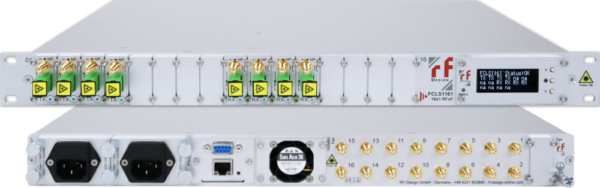

The 16×1, 4×1:1, 4×2+1 and 2×4+1 redundant RF-over-Fiber system of our FiberLink CompactLine Series comes in a 1RU/19″ chassis and an IP65 ODB. It is designed for flexible, high quality and secure optical transmission of up to 4×2 or 2×4 RF signals (L-Band, Extended L-Band and Broadband 3,2GHt) over a distance of up to 20km.
This redundant RF-over-Fiber allows a quattro 2+1 /1:1 or a dual 4+1 redundant configuration and can be populated with 8/12 active optical TX/RX modules and up to 2/4 hot-standby TX/RX modules.
The chassis are designed to allow a mixed population with TX/RX modules within the same chassis, while the chassis are equipped with corresponding RF ports (50Ohm or 75Ohm), which are used either as input or output port as per the individual configuration.
The system features automatic 2+1/4+1 redundancy switching as per preconfigured configurations. Once an error at a TX or RX module occurs, the system automatically activates a switchover to a backup TX or RX module thus ensuring an interference free signal transmission at any time.

FiberLink CompactLine

16×1 & 4×2+1 & 2×4+1 redundant RF-over-Fiber

FiberLinkplus (not redundant)

Standard RF-over-Fiber

FiberLinkplus (N+2 redundant)

N+1 & N+2 redundant RF-over-Fiber

FiberLinkplus (1:1 redundant)

1:1 redundant RF-over-Fiber

FiberLink2plus

Dual Channel RF-over-Fiber System

QLinkplus

Quad Outdoor/Indoor RF-over-Fiber

QLink Quad

Quad Outdoor/Indoor RF-over-Fiber

QLink2

Quad RF-over-Fiber TX Outdoor System

FiberLinkplus ODA System

Outdoor RF-over-Fiber System Standard, 1:1

Ecoline FiberLink

Extended L-Band and Broadband EcoLine

QLinkplus

Modular Quad RF-over-Fiber System

The QLinkplus is a modular, compact and field expandable Quad RF-over-Fiber system, supporting extended L-Band 850-2450MHz and 10MHz. The outdoor enclosure and the 1RU/19” rack mount chassis (indoor) can each be populated with max. 4 optical TX and/or RX modules, also supporting mixed TX/RX population.

Its flexibility, high quality and reliability along with lots of beneficial features and functionalities make it a perfect fit for RF-o-Fiber optical transmission at TVRO or uplink and downlink operations in Teleports, Satellite Earth Stations, VSAT hubs/terminals as well as at Broadcast- and Broadband operations.

7190M

1HE Chassis für 4 Rx/Tx Module

PL7010

3HE Chassis für 12 Rx/Tx Module plus Management-Modul

4000 ODU

Aussen-Einheit (ODU) für 6 TRx/Tx Module

PL7220T / PL7220R10

L-Band Link Module für 40km

PL27220T

2-fach L-Band Link Module

PL7440

Breitband L-Band Link Module (10-3000MHz)

PL700 MCP

Management-Modul

CWDM 3000

CWDM-Multiplexer & Demultiplexer (1HE-Gerät)
